User guide | ~okeanos IAAS

PITHOS+ UI

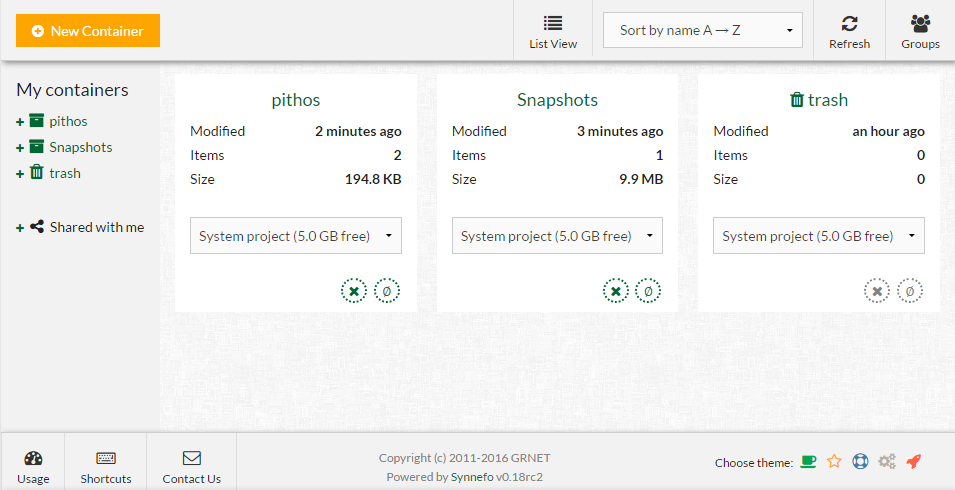

When you login in Pithos+ you should see the following page.

userguide pithos_welcome_page_png

At first you need to get familiar with the concept of "Containers". Containers are the parent folders in which you can manage your folders and files. By default two containers are enabled: "pithos" and "trash". The first one is the container in which your data will be stored and the second one is the container that keeps your trash files before they get permanently deleted.

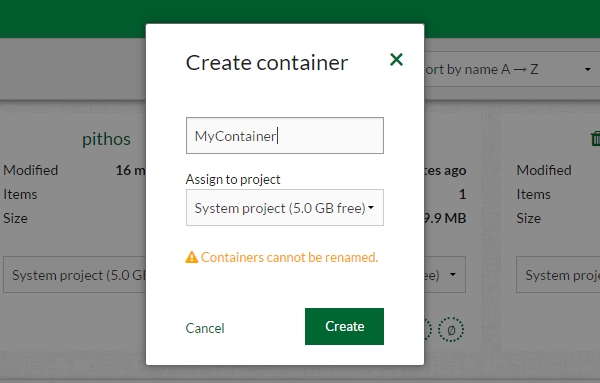

Of course you can create your own containers by pressing the "New container" button. In the pop up window you will have to insert your container's name and select in which project with available resources it will be assigned.

userguide pithos_new_container_png

On the left of the page you can see the existing containers. You can empty or delete each container, or even reassign it to another project. Of course you cannot delete your trash container.

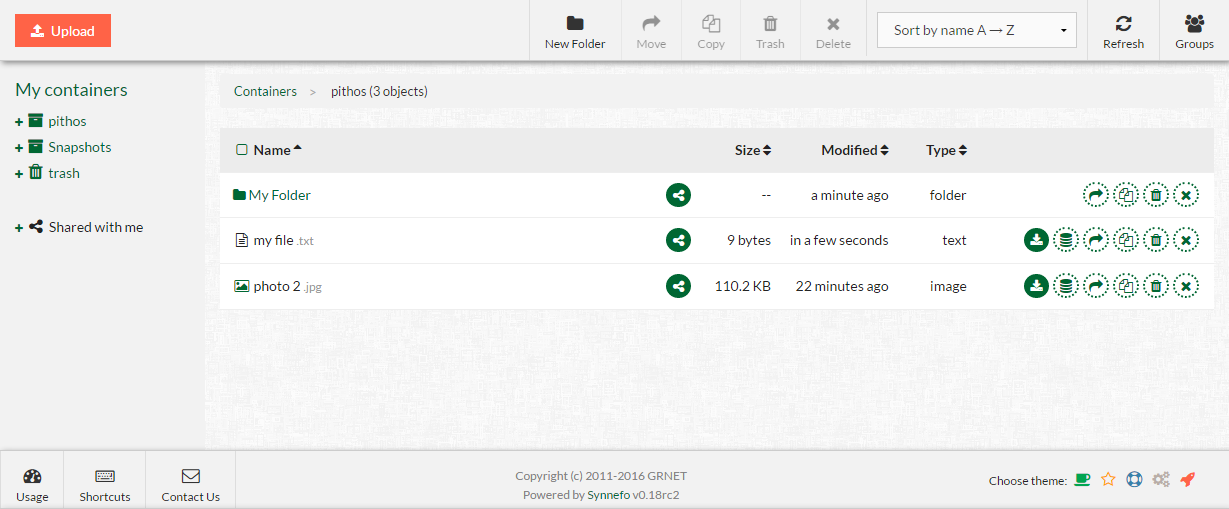

So after you select to navigate to a container you should see the following page.

userguide pithos_image1_png

The site can be visually divided into the following parts:

On the left of the page, you can see the containers and folders you have created. You can also see a list of users that share files or folders with you.
In the main central area, you can see the files and folders in each container or another folder. Next to each of them you will notice several buttons that will apply an action to each of them. Hover your mouse over them to see what they can do!

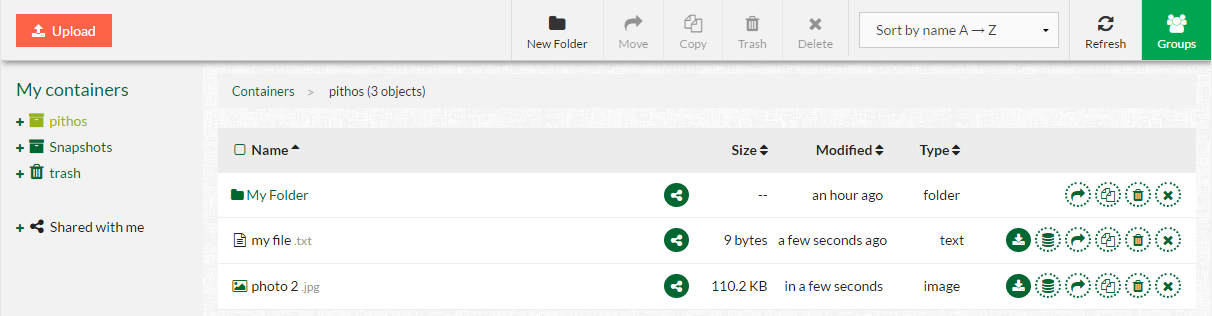

On the upper part, there are actions a user can make within the current container or directory by selecting multiple files/folders. Also there is the option to create groups in order to share files with.
On the bottom bar you can view your Pithos+ available quotas, find useful shortcuts, contact the ~okeanos global team or even change the theme of the Pithos+ User Interface.

Now, let's see what else you can do with Pithos+.

How to upload files?

Of course, the first and foremost Pithos+ feature is file uploading. After you have selected the folder you want to upload your files to (more on the Create Folders section), press the "Upload" button and then the default explorer window will appear on your screen.

Firstly, choose which files you want to upload. You can choose multiple files by holding pressed the -Ctrl- key and clicking the files you want to select. Finally, press the "Open" button to upload the selected files.

Otherwise, if you find this way of uploading boring, just drag & drop the files you want to upload after having selected the container in which you want the files to be uploaded.

How to manage my folders/files?

In Pithos+, you have the ability to manage your files and folders just as you would on your computer. So you can copy, delete, paste and create new folders for your files.

Create folders

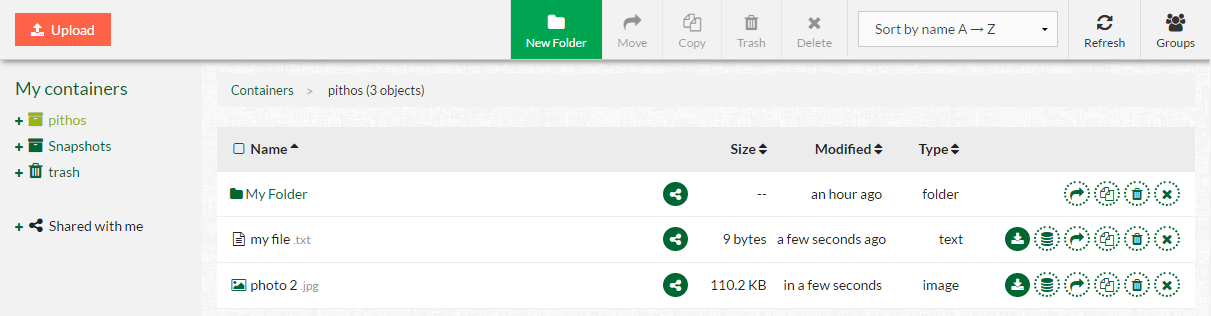

You can create a new folder within the parent folder (the one you are now) by clicking the "New folder" button. The default parent folder is "Pithos".

userguide pithos_create_folder_png

Delete files/folders

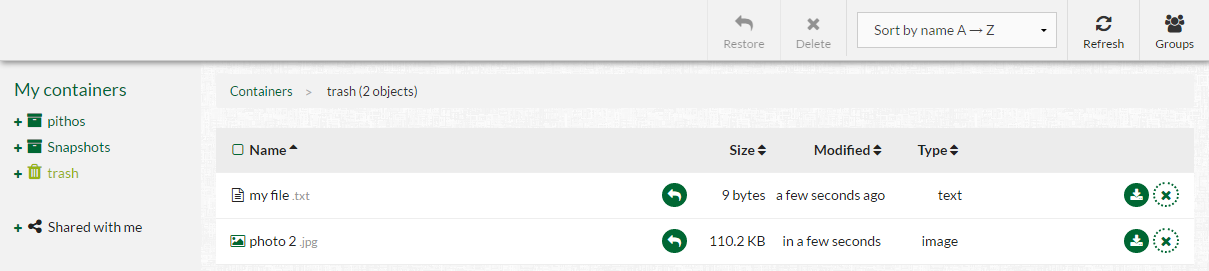

For each file/folder you want to delete, you can choose the "Move to Trash" button userguide pithos_move_to_trash_png . This option moves the file/folder to the Recycle Bin. From there you can either restore it userguide pithos_restore or permanently delete it userguide pithos_delete_png .

userguide pithos_trash_container

Otherwise you can click the "Delete" button userguide pithos_delete_png if you want to permanently delete it on the go.

Copy/Cut/Paste files/folders

You also have the option to copy or move a file/folder by selecting the right action. After you select to copy userguide pithos_copy_png or move userguide pithos_move_png a file/folder a window will pop up and ask you to select the folder in which you want to paste or move the file/folder.
